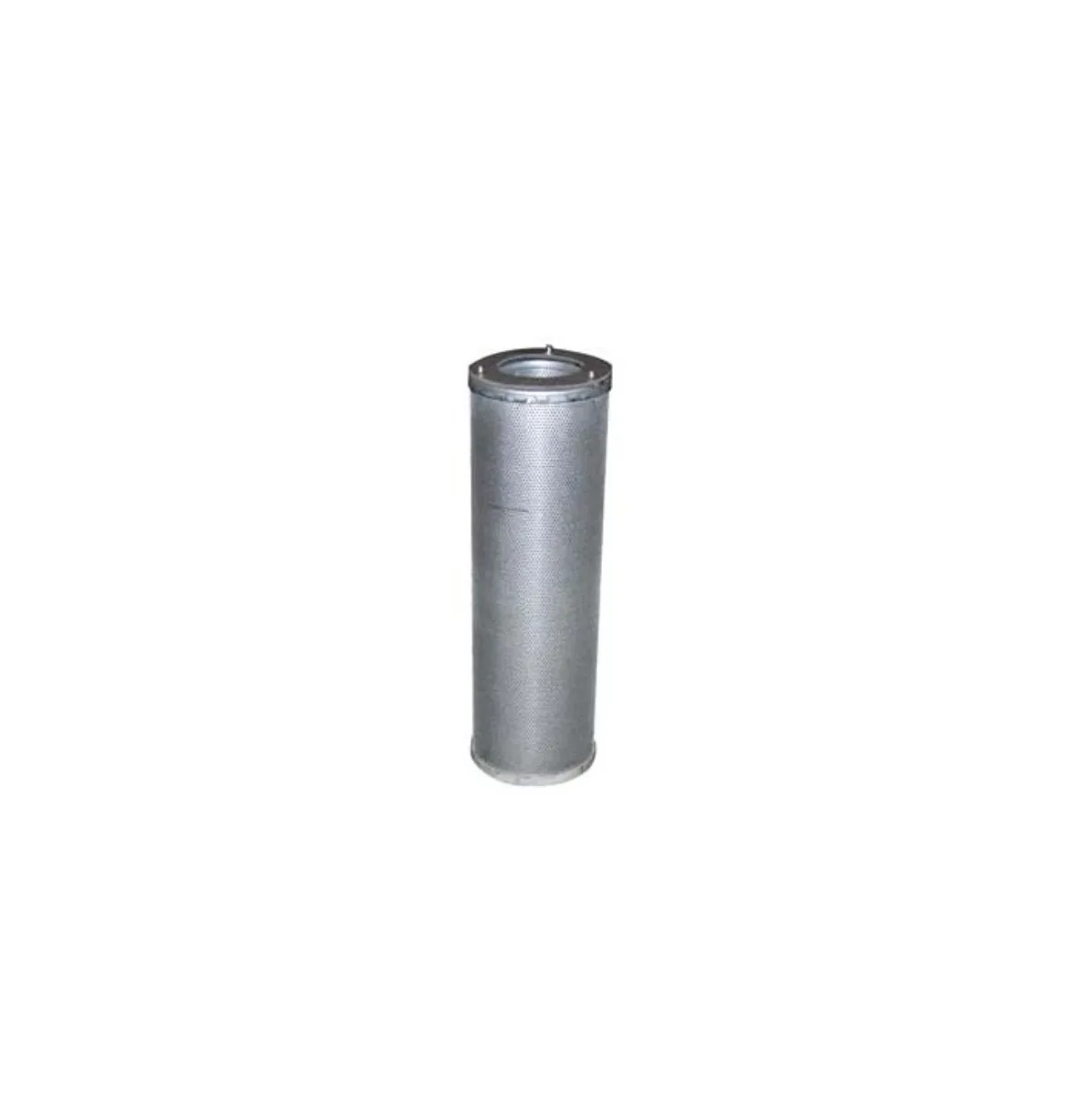

CarbonFilter Pro 410 is a highly efficient filter cartridge, specifically designed for professional air purification systems in gastronomy and industry. Filled with premium CKV-3 activated carbon (3 mm granules), this cartridge offers a large adsorption surface to reliably bind odor molecules, grease vapors, and organic hydrocarbons.

With an optimal ratio of diameter (160 mm) to height (410 mm), the cartridge guarantees sufficient contact time (21 s at 200 m³/h) for thorough cleaning of the passing air. Thanks to its robust construction, operation at temperatures up to 80 °C is possible, which is particularly crucial for range hoods in professional kitchens.

When properly dimensioned and adhering to a maximum relative humidity of 70%, this cartridge ensures clean, odor-free exhaust air, improves the working environment, and meets stringent environmental protection requirements.

---

✅ Technical Details

Parameter	Value
Filter type	Activated carbon cartridge
Outer diameter	160 mm
Inner diameter	95 mm
Height	410 mm
Carbon type	CKV-3 (3 mm standard carbon)
Carbon weight	2.6 kg
Total weight	3.78 kg
Max. operating temperature	80 °C
Max. relative humidity	70%
Contact time (at 200 m³/h)	21 s
