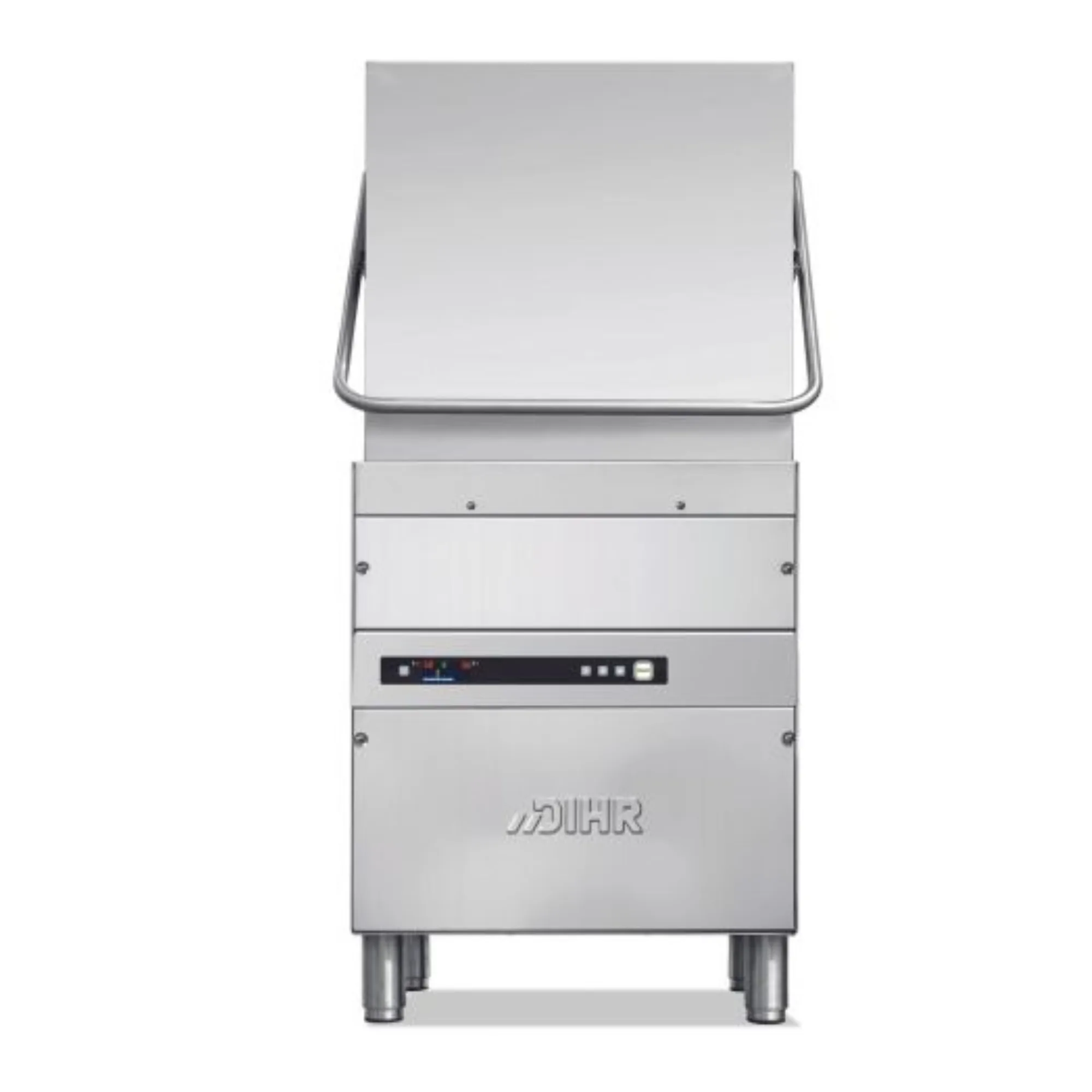

DIHR HT 11 T DA | Hood Dishwasher with Integrated Exhaust Hood | 720x735x1445/1880 mm

DIHR HT 11 T is a powerful hood dishwasher with integrated exhaust hood, designed for professional kitchens with high washing demands. With an insertion height for gastronorm trays GN 1/1 and baskets 500x500 mm, the appliance is ideal for restaurants, hotels, catering, and large kitchens.

Thanks to up to 4 washing cycles (50 / 80 / 120 / 180 seconds) and a capacity of up to 72 baskets per hour (at 55 °C inlet temperature), the HT 11 T handles large amounts of dishes in a short time. The integrated boiler with 10 l capacity and 9,000 W heating power ensures a constant rinse temperature of 85 °C for hygienic results. The washing tank holds 30 l and is maintained at 55 °C by a 2,700 W tank heater. The powerful washing pump (1,120 W, up to 630 l/min) provides intensive and even cleaning.

The integrated exhaust solution significantly reduces steam and heat development in the washing area, improving room climate – a plus for employee comfort and hygiene.

Your Benefits at a Glance

• 🔄 4 washing cycles (50/80/120/180 s) – flexible for glasses, dishes & GN trays
• ⚡ High washing performance – up to 72 baskets/hour (at 55 °C inlet)
• 🧼 Hygienic rinsing – boiler 10 l / 9,000 W, rinse temperature 85 °C
• 🌡️ Stable tank – 30 l capacity, 2,700 W tank heater, operating temperature 55 °C
• 🌫️ With exhaust hood – less steam and heat in the washing area
• 📏 Suitable for GN 1/1 – maximum plate height 410 mm, GN 1/1 trays (530x325 mm)
• 🔇 Pleasant operation – noise level approx. 63.6 dB(A)
• 💧 Low water consumption – only approx. 2.8 l per wash cycle (at 200 kPa)
• 🧩 Compatible with water hardness 2–8 °F – ideal in combination with water treatment

Technical Details DIHR HT 11 T

Dimensions & Construction

• Width: 720 mm
• Depth: 735 mm
• Height: 1,445 mm / 1,880 mm (hood open)
• Insertion height: suitable for plates up to Ø 410 mm and GN 1/1 trays (530x325 mm)
• Basket size: 500 x 500 mm
• Net weight (basic version): 100 kg

Performance & Connections

• Power connection: 400 V / 3N / 50 Hz
• Total power: 10,120 W
• Pump power: 1,120 W (max. 630 l/min)
• Boiler: 10 l, boiler heater 9,000 W, rinse temperature 85 °C
• Tank: 30 l, tank heater **
