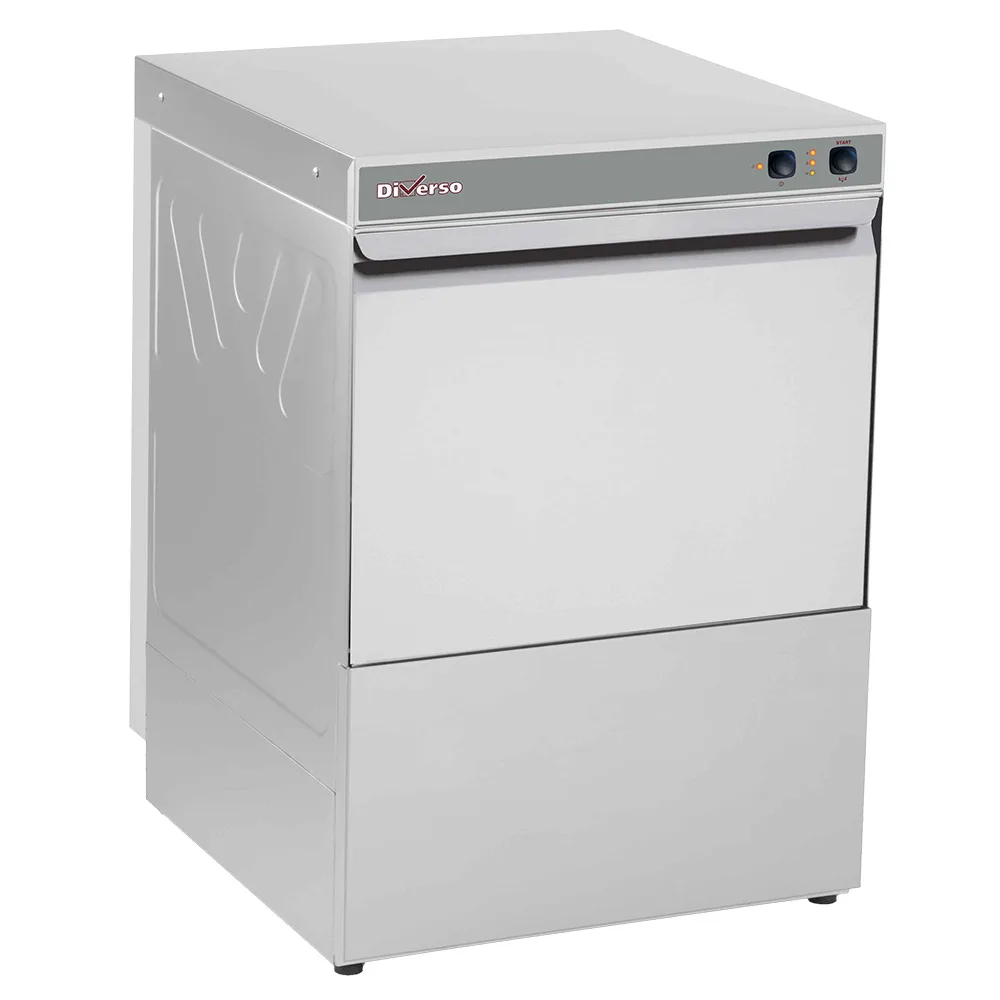

Glasswasher, 400x400 mm rack, 3.4 kW, (W x D x H) 435 x 540 x 670 mm

The glasswasher with 400x400 mm rack is a compact, high‑performance solution for bars, cafés, wine bars, and restaurants. With its robust stainless steel construction and European manufacturing quality, it is designed for intensive daily use.

Handling up to 30 racks per hour (120‑second cycle), it reliably covers high glass turnover. The glass loading height of 300 mm makes it suitable for a wide range of glass sizes. A standard rinse aid dispenser is included.

The wash tank with rounded corners (capacity 8 litres, 0.6 kW) and deep‑drawn bottom is easy to clean and hygienic. Rotating wash and rinse arms ensure even water distribution and gentle cleaning of delicate glassware. The double‑walled door improves noise and heat insulation, while the pull‑out control panel simplifies service.

The tank fills automatically. Hot rinsing consumes only 1.6 litres of water per cycle, supplied by a stainless steel pressure boiler (2.6 litres, 2.6 kW). A pump filter, safety micro‑switch on door opening and safety thermostat enhance operational safety.

The machine is supplied with a complete connection kit including water inlet hose with gaskets, impurity filter and drain hose, plus 2 racks, 1 holder and 1 cutlery cup. All machines are suitable for use with osmosis water. On request, a peristaltic detergent dosing kit and drain pump kit are available.

Technical Data

• Model: Glasswasher, 400x400 mm rack
• Rack size: 400 x 400 mm
• Capacity: 30 racks/hour, 120 s cycle
• Glass loading height: 300 mm
• Total power: 3.4 kW
• Voltage: 230 V / 1N / 50 Hz
• Boiler: Stainless steel pressure boiler, 2.6 l, 2.6 kW
• Tank: 8 l, 0.6 kW, rounded corners, deep‑drawn bottom, automatic filling
• Water consumption: approx. 1.6 l/cycle (hot rinse)
• Dosing: Standard rinse aid dispenser
• Controls: Mechanical controls, pull‑out control panel
• Arms: Rotating wash and rinse arms
• Safety: Door safety micro‑switch, safety thermostat
• Filter: Pump filter
• Material: Stainless steel
• Dimensions (W x D x H): 435 x 540 x 670 mm
• Gross weight: 34 kg
• Volume (packaging): 0.25 m³
• Optional: Peristaltic detergent dosing kit, drain pump kit
• Suitable for: Osmosis water supply

Scope of Supply

• 2 glass racks
• 1 holder
• 1 cutlery cup
• Connection kit (inlet hose with gaskets, impurity filter, drain hose)

Benefits & Applications

• Very robust, European‑made construction
• Compact 400x400 mm glasswasher for bars and cafés
• Very low water consumption of 1.6 l per cycle
• THERMOSTOP guarantees final rinse at 80 °C
• Gentle yet effective cleaning for a wide range of glassware
