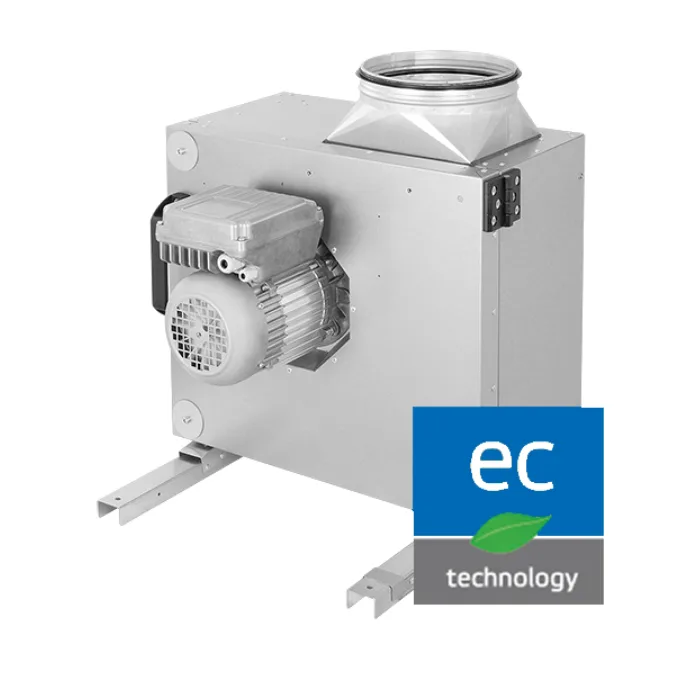

Kitchen Exhaust Box with External EC Motor 832 x 365 x 751 mm | 1.33 kW | 230 V | Ø 355 mm | 6975 m³/h

The powerful kitchen exhaust box with external EC motor is specially designed for commercial kitchens and industrial use. The double-shell housing made of galvanized sheet steel with 35 mm insulation is ideal for the extraction of oil mist, steam and vapors with an air capacity of 6975 m³/h. The speed-controllable EC motor is located outside the air flow in accordance with VDI 2052, providing an energy-efficient, durable and low-maintenance solution for daily continuous use.

Product Benefits:

• High air capacity of 6975 m³/h

• Double-walled, galvanized metal housing with 35 mm insulation

• Integrated grease collection tray with condensate and grease drain (1" outlet)

• Removable maintenance opening, swing-out fan unit

• EC motor per VDI 2052 outside the air flow, speed-controllable (0-10 V)

• Variable exhaust direction (right / left / up)

• Backward-curved radial impeller

• Internal electronic temperature monitoring

• Suitable for indoor and outdoor installation

• With mounting rail and rubber vibration dampers

Technical Data:

• Dimensions (W x D x H): 832 x 365 x 751 mm

• Connection: Ø 355 mm

• Voltage: 230 V

• Total power: 1.33 kW

• Current: 9.70 A

• Air capacity: 6975 m³/h

• Speed: 1640 rpm

• Pressure: 860 Pa

• Noise level: 52 dB(A)

• Motor type: EC motor, outside the air flow (per VDI 2052)

• Motor control: 0-10 V, speed-controllable

• Impeller: backward-curved radial

• Housing: double-walled, galvanized sheet steel, 35 mm insulation

• Motor protection class: IP54

• Complete unit protection class: IPX4

• Weight: 74 kg

• Installation: indoor and outdoor

Note: Suitable controller not included. When used outside a ventilation system for commercial kitchens (per VDI 2052), an operating diagram per ERP 2016 LOT 6 must be requested.
