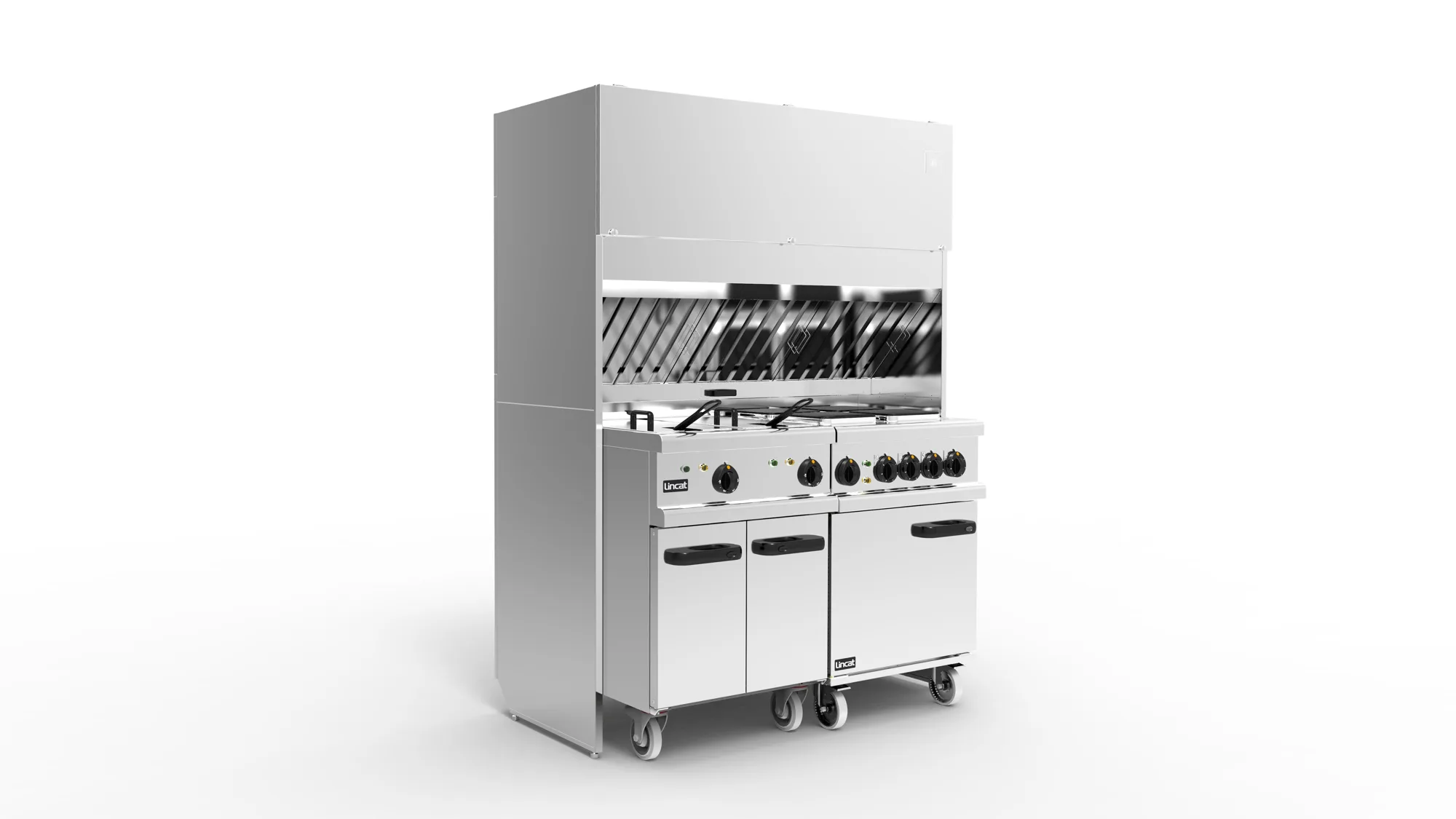

1 / 2Refresh Maxi Circulation Filter System – for electric equipment up to 1500 mm total width, 380 W, 1551 × 734 × 2222 mm
SKU: CX-Y10010 · Weight: 159 kg
excl. VAT · per unit
Description
The freestanding Refresh Maxi recirculation filter unit is designed for kitchen areas where ducting exhaust air to the outside is difficult, restricted, or associated with high costs. It accommodates multiple electric cooking appliances with a total width of up to 1500 mm.
The drawn air passes through a four-stage filter system that reduces grease, fine particles, smoke, and odours. The unit combines an extraction canopy with a filter unit positioned above and an integrated fan.
The construction in polished stainless steel is robust and easy to clean. For easier transport and access to the installation site, delivery is provided in two parts. No water or drainage connection is required.
Product Benefits:
Recirculation solution for locations with restricted exhaust ducting
Suitable for multiple electric appliances up to 1500 mm total width
Four-stage filtration to reduce grease, fine particles, smoke, and odours
Freestanding construction in polished stainless steel
Integrated fan
Simple on/off operation
Noise level according to product specifications: 62 dB
Delivery in two parts for easier handling
No water or drainage connection required
Technical Data:
Property | Specification |
|---|---|
Model | Refresh Maxi |
Product Type | Recirculation Filter Unit |
Installation Type | Freestanding |
Dimensions (W × D × H) | 1551 × 734 × 2222 mm |
Maximum Total Width of Cooking Appliances | 1500 mm |
Suitable Appliances | Electric Cooking Appliances |
Material | Polished Stainless Steel |
Filter Stages | 4 |
Power | 380 W / 0.38 kW |
Voltage | 220–240 V |
Phases | 1 |
Operation | On/Off Switch |
Plug | 3-pin Commando Plug |
Noise Level | 62 dB |
Professional Installation Required | Yes |
Water Connection Required | No |
Drainage Connection Required | No |
Drip Tray | No |
Net Weight | 159 kg |
Shipping Weight | 174.9 kg |
Shipping Dimensions (W × D × H) | 1720 × 800 × 1300 mm |
EAN | 5056105199762 |
Notes on Use and Care:
Intended for use with electric appliances.
Not suitable for use above pasta cookers.
Filters must be cleaned or replaced regularly.
Installation must be carried out by a qualified professional.
